fecotür wood

System door elements for feco system partition walls

Steel or aluminium frames with wooden door leaves

Frame thickness 105 mm, flush-mounted with solid wall and glass elements (fecoplan 70 mm)

Flush-closing door leaves (except H70-4)

Wooden door leaves flush on the hinge side (room side) as standard, optional on the opposite hinge side (corridor side)

Uniform basic design allows replacement of the door leaf without replacing the door frame (e.g. replacement of a wooden door with a glass door)

With steel frames – welded and sanded mitre corners, with aluminium frames – connected with form-fit or force-locking 3D clamping angles

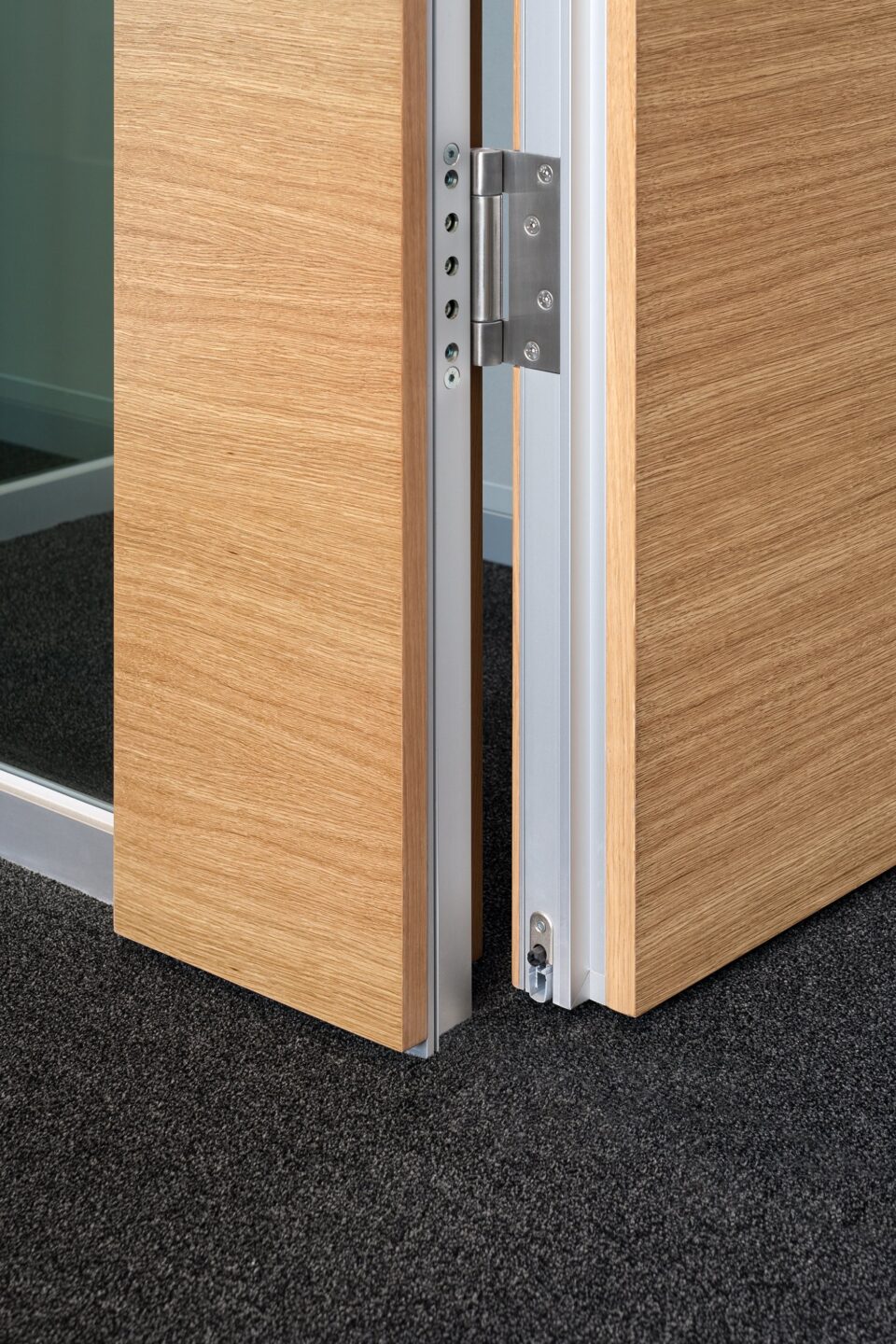

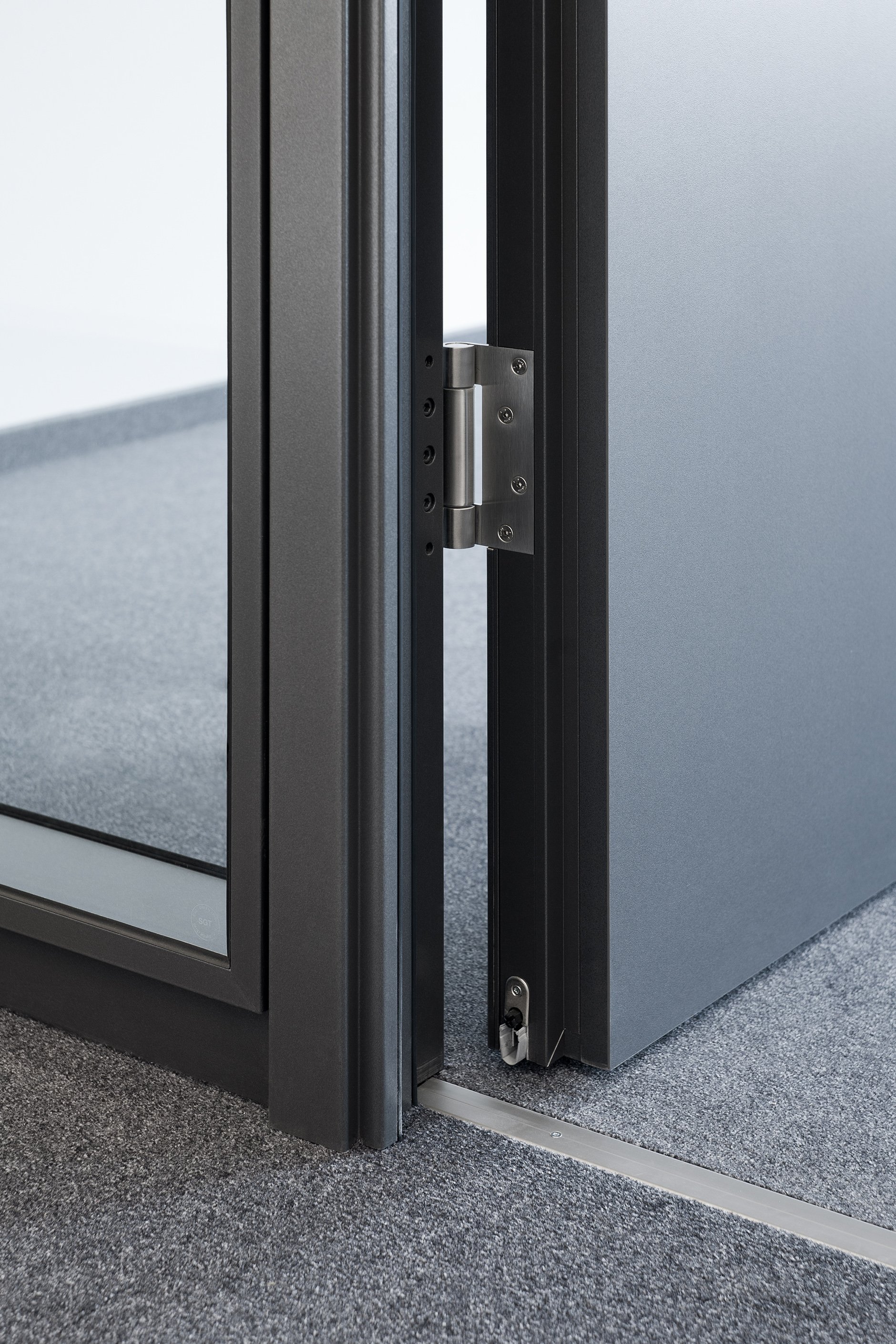

Three-dimensional adjustable hinge base

Welded door seals in the mitre corners

Wooden door leaves (H40) with high-quality flush door construction according to DIN 68706, full-perimeter solid wood concealed edge and chip and/or sound insulation insert

Aluminium-frame wooden door leaves (H70/H85/H105) with support frames made of extruded aluminium profiles, wooden composite panels, sound insulation insert and in the supporting frame frontally flush-recessed fittings

Commercial fittings with triple-roll hinges, heavy-duty mortise locks and swivel-mounted door handles

Steel frame surfaces powder-coated in RAL colours, aluminium frame surfaces anodised in natural aluminium as standard

Surfaces – door leaves with direct coating or laminate, optional – real wood veneers

Sound absorption test certificates for complete, accessible door elements

Sound absorption wood door elements R_w,P = 23 dB to 47 dB (SSK 0/1/2/3/4)

feco T30 fire-prevention wooden door element, tested in F30 and F90 solid wall and F30 glass wall
