9,000 square metres of feco system partition walls

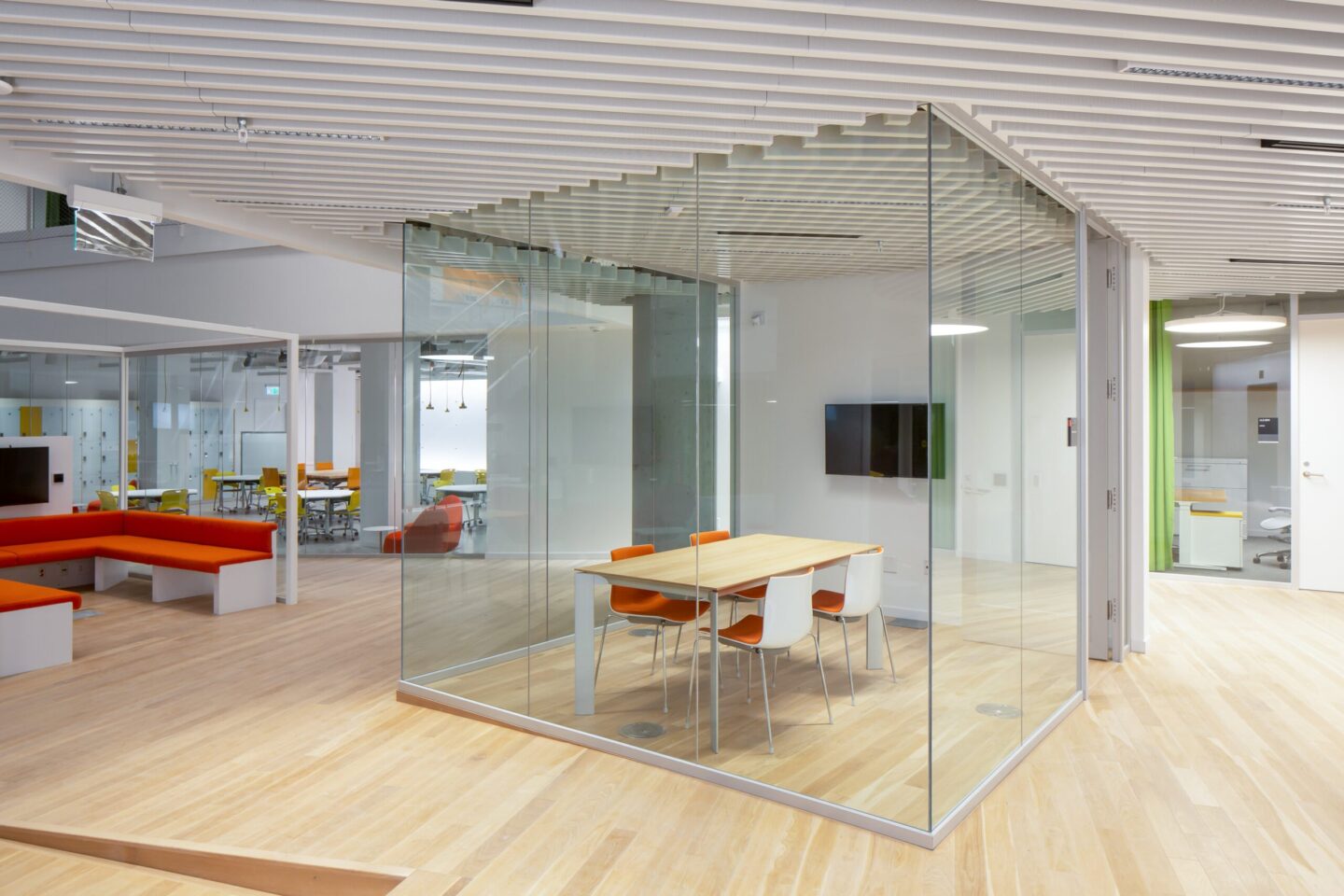

The upright-less fecoplan all-glass construction with 12.6-mm (½ inch) toughened safety glass offers maximum transparency for laboratories, meeting rooms as well as corridor walls. The glass joints are designed with polished glass edges and transparent glass adhesive tapes as moveable system partitions walls. 600 square metres of fall-proof fecoplan glazing allow the light from the two large atriums to penetrate into the depths of the building, and with 16-mm LSG achieve a sound insulation test value of Rw,P = 40 dB. Of the 600 door elements, 250 are designed as portal door elements for the professors’ and lecturers’ offices with a sound insulation test value of Rw,P = 37 dB. The oak-veneered door elements and solid-wall door side panels were manufactured by feco in Karlsruhe. The fecowand solid wall side panels were doubled to a wall thickness of 210 mm to match the width of the client’s plasterboard walls. As a licensed company, feco was able to prove that the wood materials and veneers used throughout the entire production process came exclusively from sustainably-managed forests.
280 aluminium-frame fecotür glass doors were manufactured as single- and double-leaf doors with an additional filler profile in the base area in order to comply with the US Building Code for public buildings. 70 fecotür white wooden door elements have a door leaf thickness of 45 mm (1¾ inches), which is typical in the US. The door frames and doors were prepared for the installation of US door fittings.
When it is opened in autumn 2021, Harvard will not only have a future-oriented, healthy and energy-efficient teaching, learning and research building, but also a place for meetings and fruitful exchange.
